8 CVT FULLY AUTOMATIC FLYASH BRICK

  • High Pressure Tonnage: 150 MT + 4 HP Mould Vibro Pressure, German Technology.
  • Total Power Require: 47 HP, 35.25 KW, 3 Phases.
  • Production Capacity per Shift 8 Hour: Bricks 19000 to 20000.
  • Bricks per Stock: 10 Bricks, 230 X 110 X 75mm or as per requirement.
  • System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc…
  • Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
  • Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.
  • Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

Major Components of JK-FAT-LEGENDER-1800

Cement Tiles Making Machine
Paver Tiles Making Machine
Paving Block Making Machine
Hollow Block Making Machine
Vibrating Table Machine
Manual Hydraulic Paving Block Making Machine

Technical Specification

Updated Technical Data Table
No. JK-VIBMAX-1025 Technical Data
1 Overall Dimension
2 Total Power 29.5 HP/20KW
3 Retting Pressure Maximum 3000 Psi(200 ton) Min 1400 psi (95 ton)
4 Vibration Frequency 45 To 55Hz( Heartz)
5 Pallet Size 3 to 35 Stroke/cycles per minute
6 Cycle Time
7 Power Supply 3 Phase 440 volts commercial Connection
8 Maximum Block Height 5" Inch
9 Automation Grade Fully Automatic
10 End Production Type Flyash brick, Cement Brick, Paver Block.

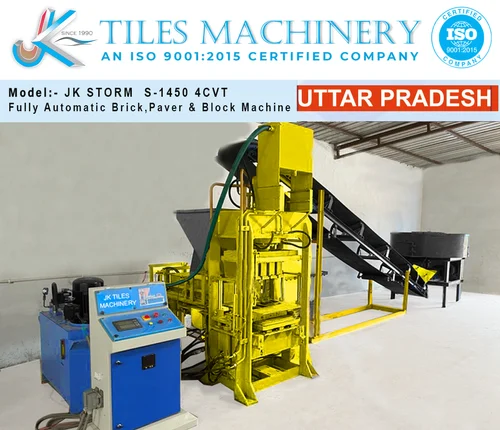

Actual Site Image Of Some Completed Projects

ABM-4S-hollow-blocks-machine (1)
WhatsApp-Image-2019-12-20-at-12.51.184
123 (1)
iggufvurvuvfe (1)
10Cavity-FullyAuto-FlyAsh-Brick
12-CVT-FLYASH-BRICK-MM
bjbhjbjkb (1)
deadkjdvdscycyjsf (1)

Application Area and Field Completed Projects
