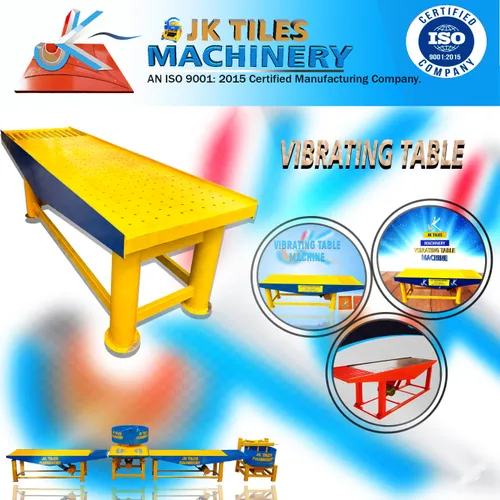

10X2.5 Vibration Table

  • Durability: Sturdy MIG welding and MS Channel Box
  • Uninterrupted performance
  • Excellent functionality
  • Maintenance-free

Major Components of JK-VIBMAX-1025

Cement Tiles Making Machine
Paver Tiles Making Machine
Paving Block Making Machine
Hollow Block Making Machine
Vibrating Table Machine
Manual Hydraulic Paving Block Making Machine

Technical Specification

No. JK-VIBMAX-1025 Technical Data
1 Overall Dimension 10 Ft X 2.5 Ft
2 Total Power 3 Hp / 2.1 Kilowatt
3 Vibration Suspension Type Anti Vibration JK Rubber Paded U Mounting Brackets
4 Vibration Frequency 60-70 Hertz (Hz)
5 Cycle Time 40 to 45 secs per mould
6 Sheet Thickness 8 MM Top Sheet Thickness/ Bottom Plate 12 MM/side Plate 8 MM
7 Power Supply 3 Phase Commercial Connection
8 Maximum Block Height Variable Depends On Product
9 Automation Grade Semi Automatic+manual
10 End Production Type Paver Block, Cement Tiles, Concrete Block, Parking Tiles, Interlocking Tiles Etc.

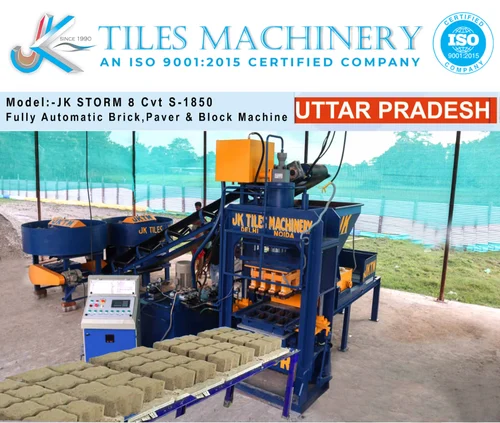

Actual Site Image Of Some Completed Projects

ABM-4S-hollow-blocks-machine (1)

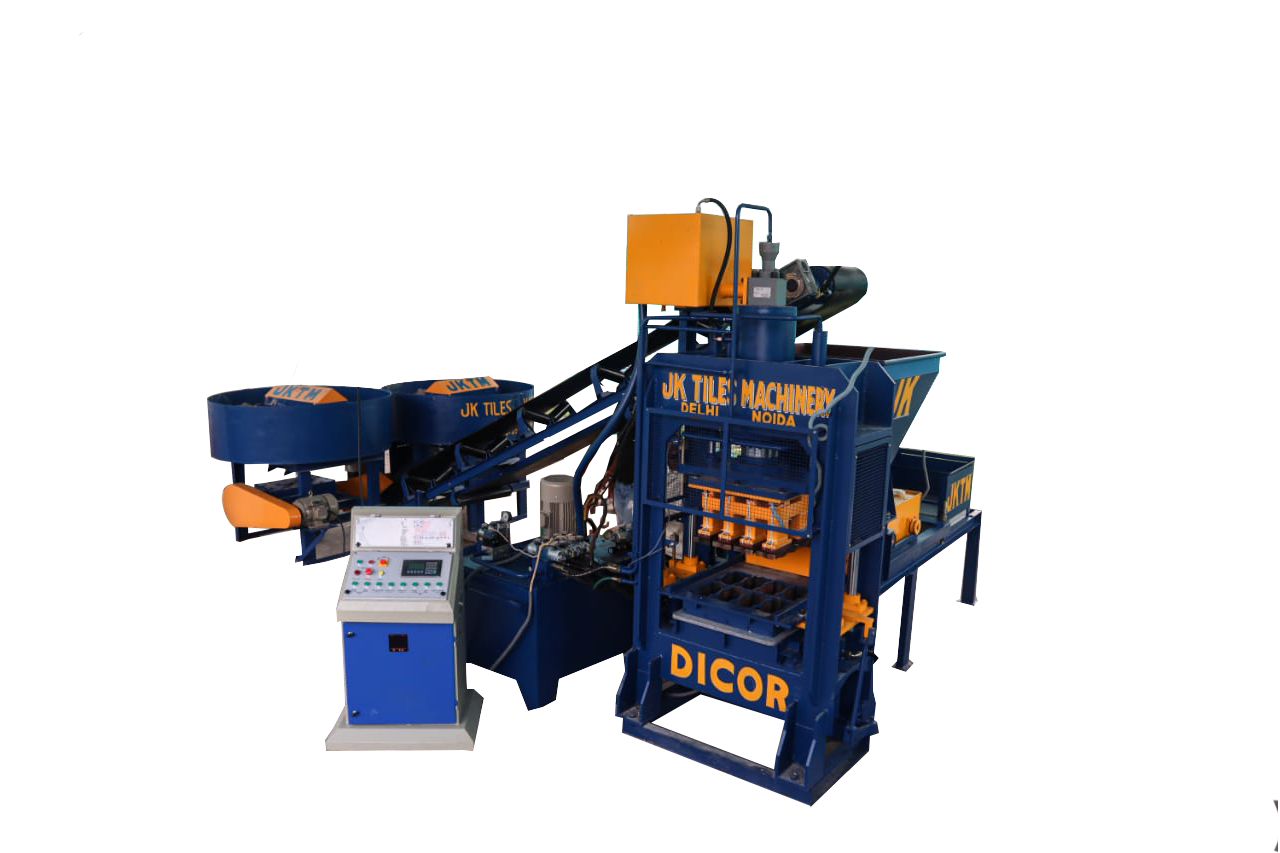

WhatsApp-Image-2019-12-20-at-12.51.184

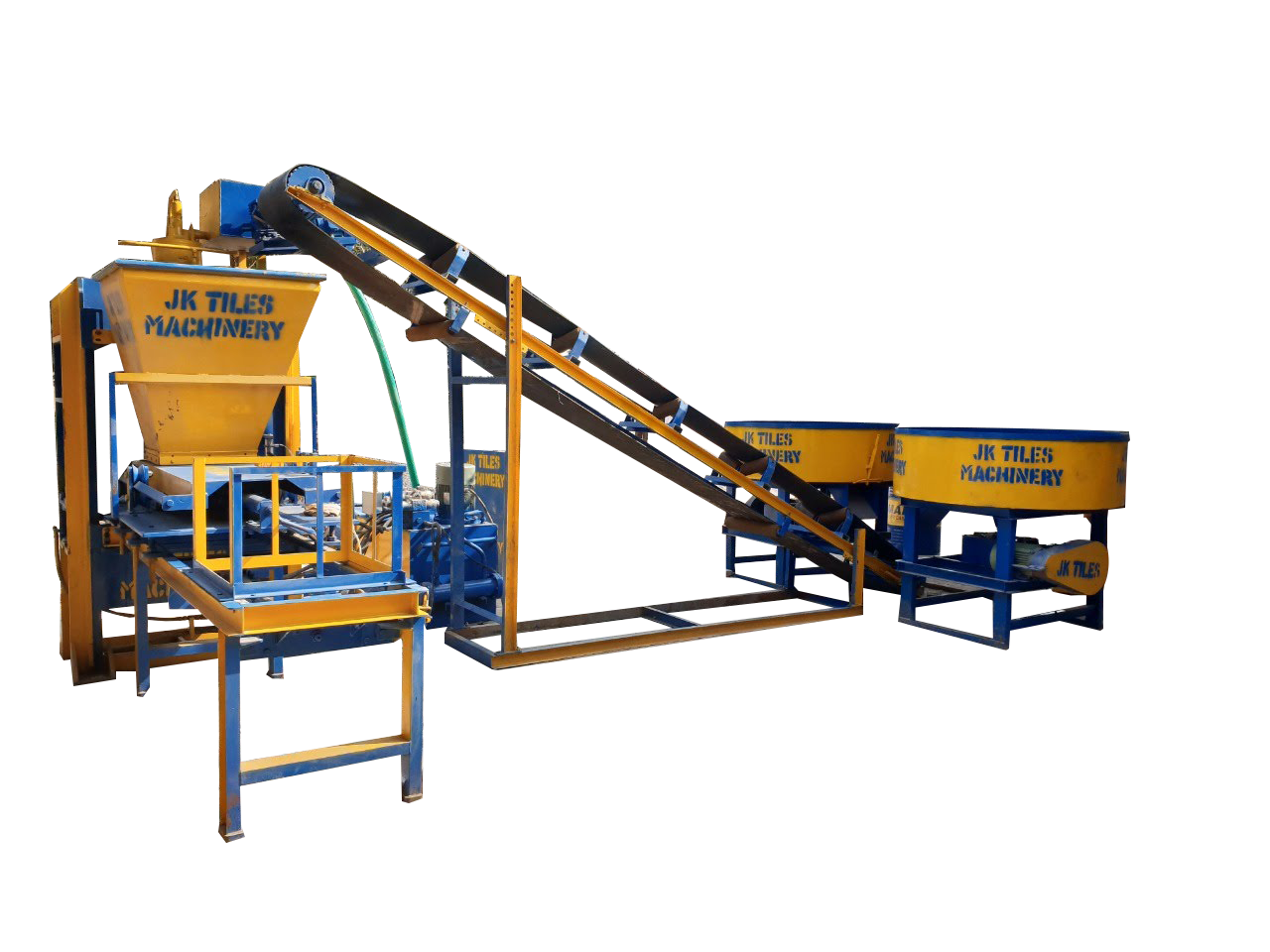

123 (1)

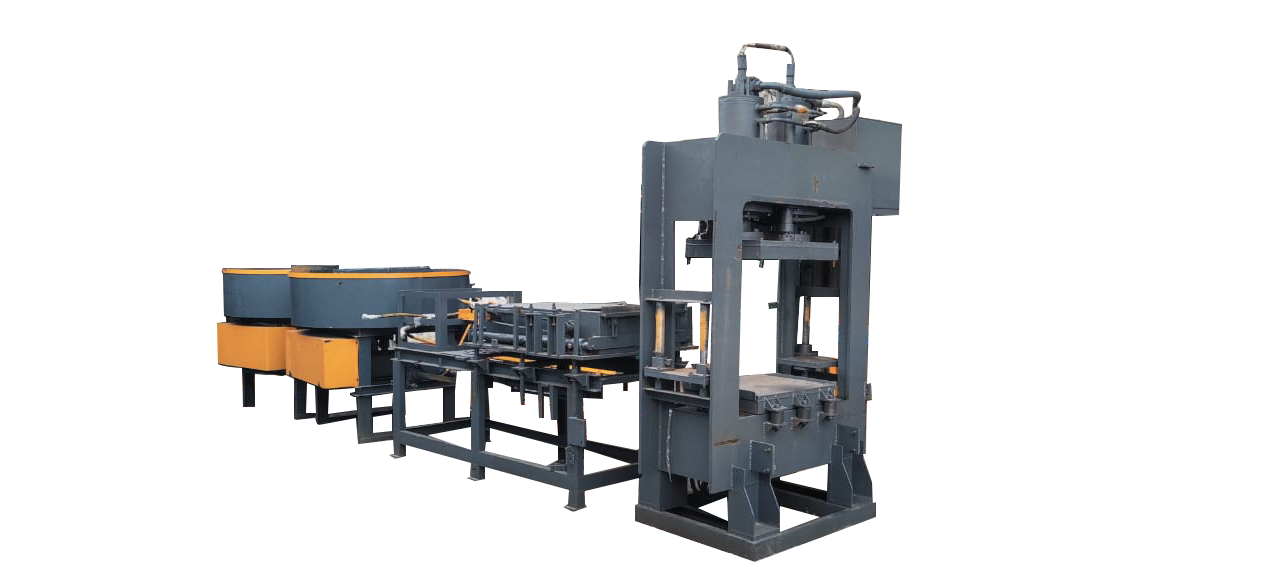

iggufvurvuvfe (1)
10Cavity-FullyAuto-FlyAsh-Brick
12-CVT-FLYASH-BRICK-MM

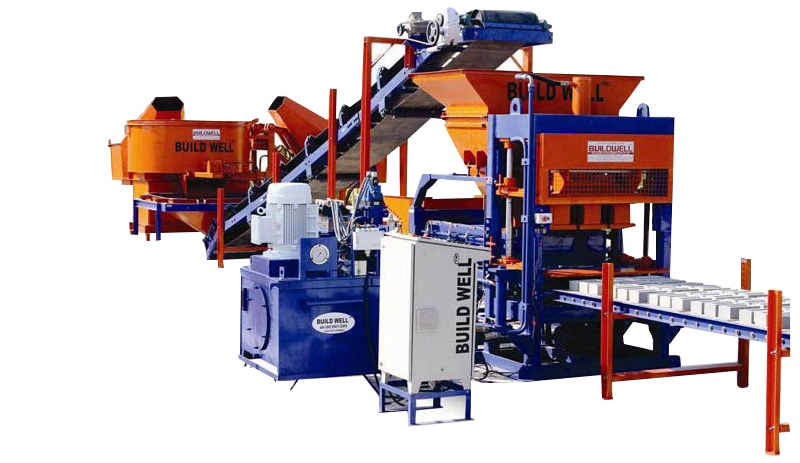

bjbhjbjkb (1)
deadkjdvdscycyjsf (1)

Application Area and Field Completed Projects
